LC8220 Datasheet - Sanyo Semicon Device

LC8220 JPEG Still Color Image Compression/Decompression LSI

Ordering number : EN 4909A CMOS LSI LC8220 JPEG Still Color Image Compression/Decompression LSI Preliminaly Overview The LC8220 JPEG LSI implements digital still image compression and decompression conforming to the JPEG (Joint Photographic Expert Group) standard. The LC8220 includes the baseline system of the ISO 10918 (JPEG) standard, and requires no external components to construct an application that performs JPEG compliant compression/decompression. Package Dimensions unit: mm 3153A-.

LC8220 Features

* Conforms to the ISO 10918-1 baseline system

* Four quantization tables and four Huffman tables (two for AC and two for DC) are built in.

* Hardware support for JPEG marker codes

* Built-in bidirectional YUV - RGB converter

* Many color component sampling rat

LC8220 Datasheet (191.29 KB)

Preview of LC8220 PDF

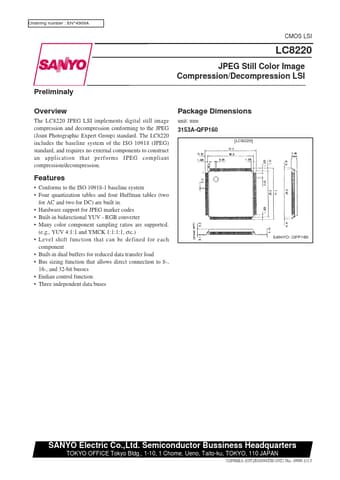

LC8220 Datasheet Preview Page 2 LC8220 Datasheet Preview Page 3

Datasheet Details

Part number:

LC8220

Manufacturer:

Sanyo Semicon Device

File Size:

191.29 KB

Description:

Jpeg still color image compression/decompression lsi.
