STK740-470 Datasheet - Sanyo Semicon Device

STK740-470 5V/5A Single Output Separate Excitation Chopper Regulator

Number Pin name Description No.6107 *3/10 STK740-470 Test Circuit 12 11 10 9 8 7 6 5 4 3 2 1 ON/OFF Vo adjust DC INPUT C1 FB L1 C2 OUTPUT (5V) GND C1 C2 L1 FB : 47µF/25V (OS capacitor) : 1000µF/16V×2 : 30µH : Ferrite-bead core GND Overvoltage Protection Circuit In a constant-vo.
Ordering number:EN 6107 Thick Film Hybrid IC STK740-470 5V/5A Single Output Separate Excitation Chopper Regulator Preliminary Overview The STK740-470 is a separate-excitation step-down chopper regulator hybrid IC for the secondstage circuit. This IC incorporates in the package all the necessary circuits for a chopper regulator including power switch, error amplifier, soft start, shutdown type output short protection, low-voltage malfunction prevention, on/off, and snubber circuits. Therefo.

STK740-470 Features

* Adoption of Sanyo IMST ; Insulated Metal Substrate Technology, allows the circuit to be operated without using a heat sink (see “No Fin Output Current Derating” chart in the page 6).

* Typical efficiency of 90% at DC 12V input, 2.5A output.

* Fine adjustment of output volta

STK740-470 Datasheet (136.08 KB)

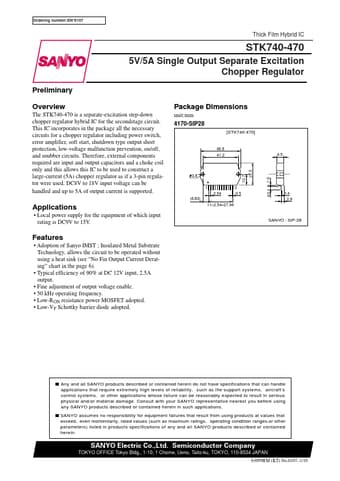

Preview of STK740-470 PDF
STK740-470 Datasheet Preview Page 2 STK740-470 Datasheet Preview Page 3

Datasheet Details

Part number:

STK740-470

Manufacturer:

Sanyo Semicon Device

File Size:

136.08 KB

Description:

5v/5a single output separate excitation chopper regulator.
