C3645 2SC3645

C3645 Description

Ordering number:ENN1720A PNP/NPN Epitaxial Planar Silicon Transistors 2SA1415/2SC3645 High-Voltage Switching, Predriver Applications .

C3645 Features

* Adoption of FBET process.
* High breakdown voltage (VCEO=160V).
* Excellent linearity of hFE and small Cob.
* Fast switching speed.
* Ultrasmall size marking it easy to provide high- density, small-sized hybrid ICs. Package Dimensions unit:mm 2038A [2SA1415/2SC3645] 4.5 1.6 1.

📥 Download Datasheet

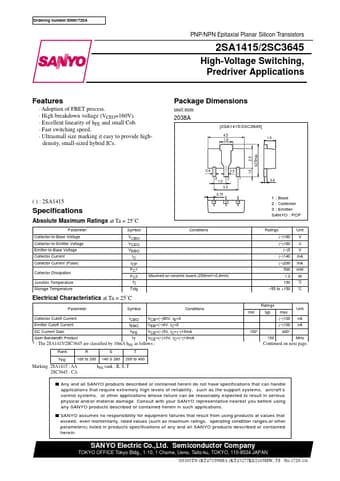

Preview of C3645 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C3645
Manufacturer
Sanyo
File Size
35.51 KB
Datasheet
C3645-Sanyo.pdf
Description
2SC3645
