C3607 2SC3607

C3607 Description

TOSHIBA Transistor Silicon NPN Epitaxial Planar Type 2SC3607 2SC3607 VHF~UHF Band Low Noise Amplifier Applications Unit: mm * Low noise figure.

C3607 Applications

* Unit: mm
* Low noise figure, high gain.
* NF = 1.1dB, |S21e|2 = 9.5dB (f = 1 GHz) Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Collector-base voltage Collector-emitter voltage Emitter-base voltage Base current Collector current Collector power dissipation VCBO VCEO VEBO

📥 Download Datasheet

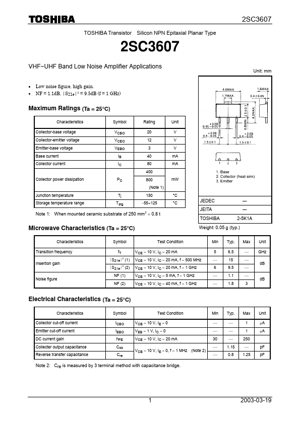

Preview of C3607 PDF
datasheet Preview Page 2 datasheet Preview Page 3
