C3670 2SC3670

C3670 Description

TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT Process) 2SC3670 Strobe Flash Applications Medium Power Amplifier Applications 2SC3670 Unit: mm <.

C3670 Applications

* Medium Power Amplifier Applications 2SC3670 Unit: mm
* High DC current gain and excellent hFE linearity : hFE (1) = 140 to 600 (VCE = 1 V, IC = 0.5 A) : hFE (2) = 70 (min), 200 (typ. ) (VCE = 1 V, IC = 2 A)
* Low saturation voltage: VCE (sat) = 0.5 V (max) (IC = 2 A, IB = 50 mA) Ab

📥 Download Datasheet

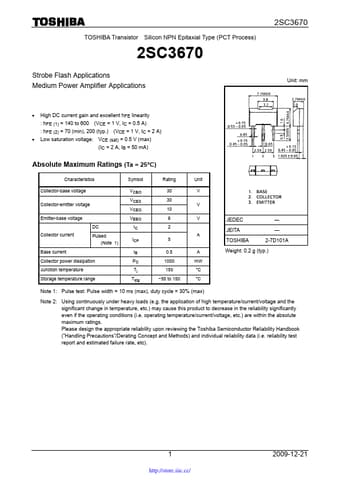

Preview of C3670 PDF
datasheet Preview Page 2 datasheet Preview Page 3
