C3676

2SC3676

C3676 Features

* High breakdown voltage (VCEO min=900V).

* Small Cob (Cob typ=5.0pF).

* Wide ASO (Adoption of MBIT process).

* High reliability (Adoption of HVP process). Package Dimensions unit:mm 2010C [2SC3676] Specifications JEDEC : TO-220AB EIAJ : SC46 1 : Base 2 : Collector 3 : Emitter A

C3676 Datasheet (94.90 KB)

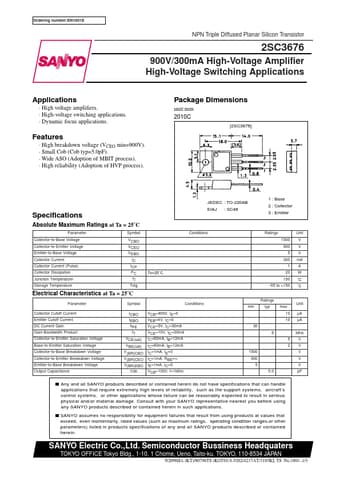

Preview of C3676 PDF

Datasheet Details

Part number:

C3676

Manufacturer:

Sanyo

File Size:

94.90 KB

Description:

2sc3676.
Ordering number:EN1801E NPN Triple Diffused Planar Silicon Transistor 2SC3676 900V/300mA High-Voltage Amplifier High-Voltage Switching Applications .
