C3671 2SC3671

C3671 Description

TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT Process) 2SC3671 Strobe Flash Applications Medium Power Amplifier Applications 2SC3671 Unit: mm <.

C3671 Applications

* Medium Power Amplifier Applications 2SC3671 Unit: mm
* High DC current gain and excellent hFE linearity : hFE = 140 to 450 (VCE = 2 V, IC = 0.5 A) : hFE = 70 (min) (VCE = 2 V, IC = 4 A)
* Low saturation voltage: VCE (sat) = 1.0 V (max) (IC = 4 A, IB = 0.1 A)
* High collecto

📥 Download Datasheet

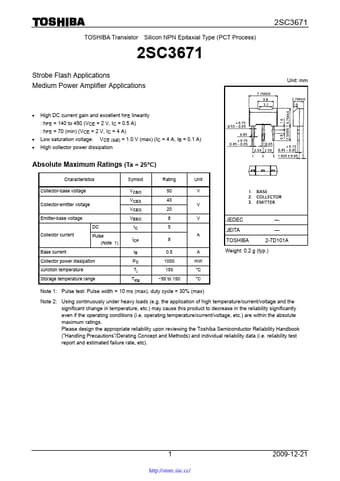

Preview of C3671 PDF
datasheet Preview Page 2 datasheet Preview Page 3
