C3620 2SC3620

C3620 Description

2SC3620 TOSHIBA Transistor Silicon NPN Triple Diffused Type (PCT Process) 2SC3620 Color TV Horizontal Driver Applications Color TV Chroma Output Appl.

C3620 Applications

* Color TV Chroma Output Applications Unit: mm
* High breakdown voltage: VCEO = 300 V
* Recommended for chroma output and driver applications for line-operated TV horizontal. Maximum Ratings (Tc = 25°C) Characteristics Collector-base voltage Collector-emitter voltage Emitter-base v

📥 Download Datasheet

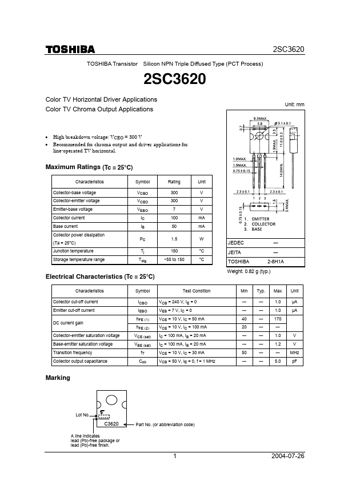

Preview of C3620 PDF
datasheet Preview Page 2 datasheet Preview Page 3
