C4402 Datasheet, 2sc4402, Sanyo

C4402 Features

  • 2sc4402
  • Low-voltage operation : fT=3.0GHz typ (VCE=3V) : MAG=12dB typ (VCE=3V, IC=10mA) : NF=1.5dB typ (VCE=3V, IC=5mA)
  • Very small-sized package permitting 2SC4402- applied

PDF File Details

Part number:

C4402

Manufacturer:

Sanyo

File Size:

118.72kb

Download:

📄 Datasheet

Description:

2sc4402.

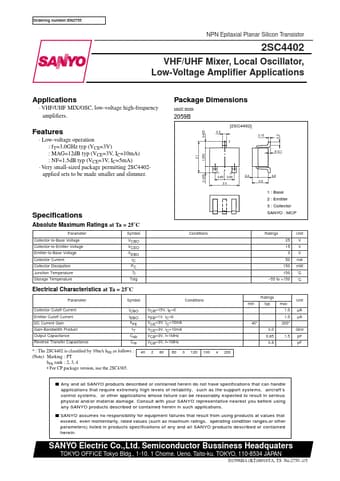

Datasheet Preview: C4402 📥 Download PDF (118.72kb)
Page 2 of C4402 Page 3 of C4402

C4402 Application

  • Applications Applications
  • VHF/UHF MIX/OSC, low-voltage high-frequency amplifiers. Package Dimensions unit:mm 2059B Features
  • L
