C4403 2SC4403

C4403 Description

Ordering number:EN2756 NPN Epitaxial Planar Silicon Transistor 2SC4403 VHF/UHF Local Oscillator Applications Applications * VHF/UHF oscillators..

C4403 Features

* High cutoff frequency : fT=3.0GHz typ
* High power gain : MAG=12dB typ (f=0.9GHz)
* Small noise figure : NF=2.5dB typ (f=0.9GHz)
* Very small-sized package permitting 2SC4403- applied sets to be made smaller and slimmer. 2.1 1.250 0.425 Package Dimensions unit:mm 2059B [2SC4403]

C4403 Applications

* Applications

📥 Download Datasheet

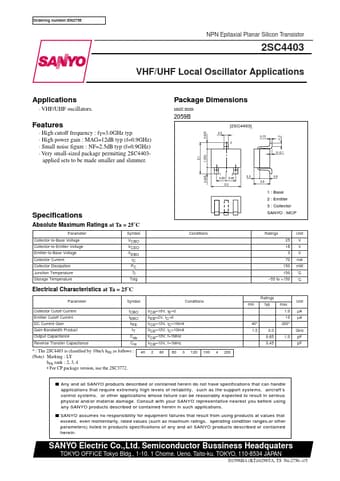

Preview of C4403 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C4403
Manufacturer
Sanyo
File Size
110.74 KB
Datasheet
C4403-Sanyo.pdf
Description
2SC4403
