C4404 2SC4404

C4404 Description

Ordering number:EN2757 NPN Epitaxial Planar Silicon Transistor 2SC4404 UHF Local Oscillator, Wide-Band Amplifier Applications Applications * UHF.

C4404 Features

* High cutoff frequency : fT=5.0GHz typ
* High power gain : MAG=14dB typ (f=0.9GHz)
* Small noise figure : NF=2.2dB typ (f=0.9GHz)
* Very small-sized package permitting 2SC4404- applied sets to be made smaller and slimmer. 2.1 1.250 0.425 Package Dimensions unit:mm 2059B [2SC4404]

C4404 Applications

* Applications

📥 Download Datasheet

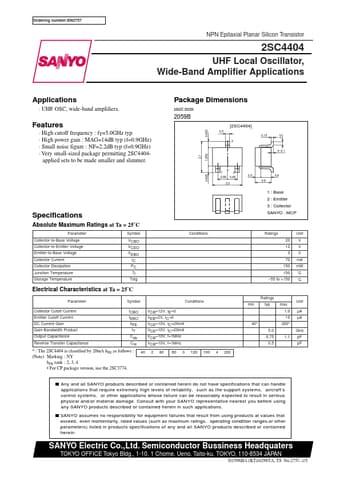

Preview of C4404 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C4404
Manufacturer
Sanyo
File Size
111.75 KB
Datasheet
C4404-Sanyo.pdf
Description
2SC4404
