C4705

2SC4705

C4705 Features

* High DC current gain (hFE=800 to 3200).

* Low collector-to-emitter saturation voltage : VCE(sat)≤0.5V max.

* High VEBO : VEBO≥15V.

* Small size making it easy to provide high-density, hybrid ICs. Package Dimensions unit:mm 2038A [2SC4705] 4.5 1.6 0.4 0.5 32 1.5 1 3.0 0.75 Sp

C4705 Datasheet (100.21 KB)

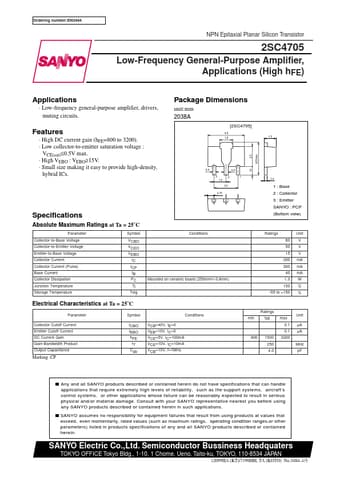

Preview of C4705 PDF

Datasheet Details

Part number:

C4705

Manufacturer:

Sanyo

File Size:

100.21 KB

Description:

2sc4705.
Ordering number:EN3484 NPN Epitaxial Planar Silicon Transistor 2SC4705 Low-Frequency General-Purpose Amplifier, Applications (High hFE) Applications.
