C470UT170

LED

C470UT170 Features

* Small Chip

* 170 x 170 x 50 μm

* Single Wire Bond Structure

* UT LED Performance

* 450 nm

* 12+ mW

* 460 nm

* 10+ mW

* 470 nm

* 10+ mW

* 527 nm

* 4+ mW

* Low Forward Voltage

* 2.9 V Ty

C470UT170 General Description

P-N Junction Area (μm) Chip Top Area (μm) Chip Thickness (μm) Chip Bottom Area (μm) Au Bond Pad Diameter (μm) Bonding Area Diameter (μm) Note 5 Au Bond Pad Thickness (μm) Backside Contact Metal Area (μm) CxxxUT170-Sxxxx-31 Dimension Tolerance 140 x 140 ± 25 170 x 170 ± 25 50 ± 10 130 x 130.

C470UT170 Datasheet (263.03 KB)

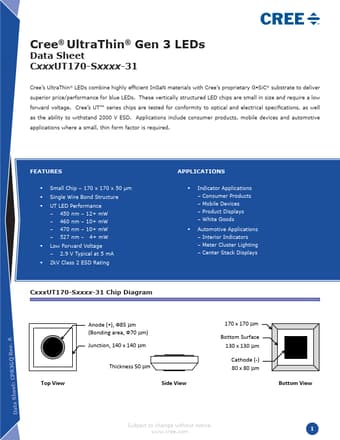

Preview of C470UT170 PDF

Datasheet Details

Part number:

C470UT170

Manufacturer:

CREE

File Size:

263.03 KB

Description:

Led.
Cree® UltraThin® Gen 3 LEDs Data Sheet CxxxUT170-Sxxxx-31 Cree’s UltraThin® LEDs combine highly efficient InGaN materials with Cree’s proprietary G
