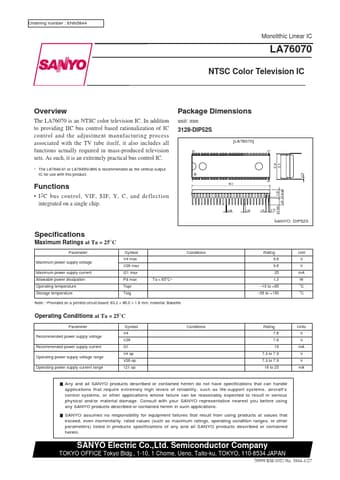

LA76070 - NTSC Color Television IC

Ordering number : ENN5844 Monolithic Linear IC LA76070 NTSC Color Television IC Overview The LA76070 is an NTSC color television IC.

In addition to providing IIC bus control based rationalization of IC control and the adjustment manufacturing process associated with the TV tube itself, it also includes all functions actually required in mass-produced television sets.

As such, it is an extremely practical bus control IC.

The LA7840/41 or LA7845N/46N is recommended as the vertical output

LA76070 Features

* 20 HEX 0 HEX 0 HEX 20 HEX 00 HEX 00 HEX 00 HEX 0 HEX 7F HEX 7F HEX 0 HEX 40 HEX 0 HEX 40 HEX 0 HEX 0 HEX 0 HEX 10 HEX 0 HEX 40 HEX 0 HEX 40 HEX 0 HEX 4 HEX 10 HEX 0 HEX 0 HEX 00 HEX (continued) No. 5844-5/27 LA76070 LA76070 BUS:
