LA7625 Monolithic Linear IC

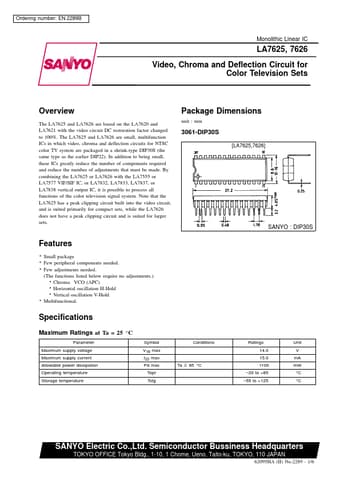

Ordering number: EN 2289B Monolithic Linear IC LA7625, 7626 Video, Chroma and Deflection Circuit for Color Television Sets Overview The LA7625 and LA7626 are based on the LA7620 and LA7621 with the video circuit DC restoration factor changed to 100%. The LA7625 and LA7626 are small, multifunction ICs in which video, chroma and deflection circuits for NTSC color TV system are packaged in a shrink-type DIP30S (the same type as the earlier DIP22). In addition to being small, these ICs greatly re.

LA7625 Features

* . Small package . Few peripheral components needed. . Few adjustments needed. (The functions listed below require no adjustments.) . Chroma VCO (APC) . Horizontal oscillation H-Hold . Vertical oscillation V-Hold . Multifunctional. Specifications Maximum Ratings at Ta = 25 °C Parameter Maximum suppl
