LA7615 - Single-Chip NTSC Color TV-IC

LA7615 Description

Ordering number : ENN5841 Monolithic Linear IC LA7615 Single-Chip NTSC Color TV IC Overview The LA7615 is an NTSC color TV IC that supports computer.

LA7615 Features

* Pursuit of higher integration levels The LA7615 integrates VIF, SIF, luminance, chrominance, and deflection (horizontal and vertical synchronization) circuits, A/V switching, and power supply control on a single chip.
* Bus control for reduced external component counts and mechanic

📥 Download Datasheet

Preview of LA7615 PDF

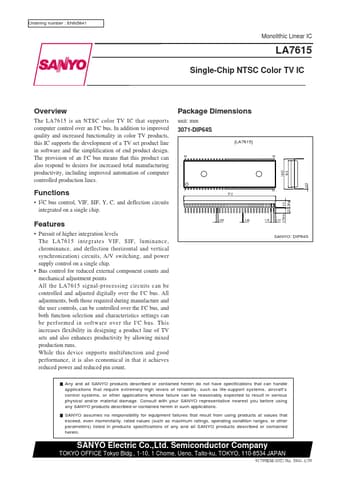

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LA7615
Manufacturer
Sanyo
File Size
201.46 KB
Datasheet
LA7615-Sanyo.pdf
Description
Single-Chip NTSC Color TV-IC
