LA7832 Datasheet - Sanyo

LA7832 Color TV Vertical Deflection

Ordering number: EN 5145 Monolithic Linear IC LA7832 Color TV Vertical Deflection Output Circuit Overview The LA7832 is a monolithic linear IC for vertical deflection output for small and mid-sized color television sets that requires few external components and dissipates little power. When used in conjunction with the LA7620 series of video chroma deflection ICs, the LA7800 series of deflection ICs, and the LA7850 series of display ICs, it is possible to create a stable and compact vertical .

LA7832 Features

* . High output. . Low power dissipation due to built-in pump-up circuit. . Few external components needed. . Thermal protection circuit built in. SANYO : SIP7H Specifications Maximum Ratings at Ta = 25 °C Parameter Maximum supply voltage Deflection output current Allowable power dissipation Operati

LA7832 Datasheet (63.74 KB)

Preview of LA7832 PDF

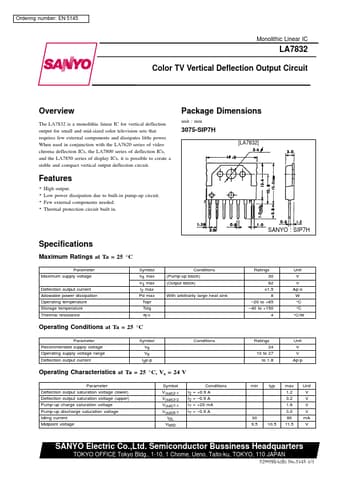

LA7832 Datasheet Preview Page 2 LA7832 Datasheet Preview Page 3

Datasheet Details

Part number:

LA7832

Manufacturer:

Sanyo

File Size:

63.74 KB

Description:

Color tv vertical deflection.
