LA7833 Datasheet - Sanyo

LA7833 Color TV Vertical Deflection

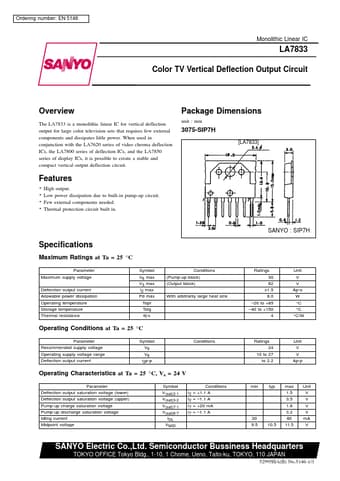

Ordering number: EN 5146 Monolithic Linear IC LA7833 Color TV Vertical Deflection Output Circuit Overview The LA7833 is a monolithic linear IC for vertical deflection output for large color television sets that requires few external components and dissipates little power. When used in conjunction with the LA7620 series of video chroma deflection ICs, the LA7800 series of deflection ICs, and the LA7850 series of display ICs, it is possible to create a stable and compact vertical output deflect.

LA7833 Features

* . High output. . Low power dissipation due to built-in pump-up circuit. . Few external components needed. . Thermal protection circuit built in. SANYO : SIP7H Specifications Maximum Ratings at Ta = 25 °C Parameter Maximum supply voltage Deflection output current Allowable power dissipation Operati
