LB11995 Datasheet - Sanyo

LB11995 Three-Phase Brushless Motor Driver for CD-ROM Spindle Drive

Pin number 3 Pin name Pin voltage 4V to 13.6V Equivalent circuit Pin function VCC2 VCC3 Source side predrive voltage supply pin Constant current control amplifier voltage supply pin Power supply pin for all circuits except output transistors, source predriver, and constant current control amp.

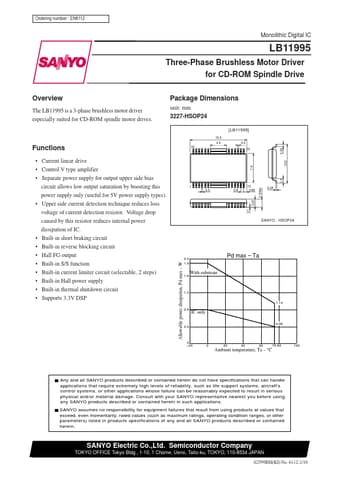

Ordering number : EN6112 LB11995 Monolithic Digital IC LB11995 Three-Phase Brushless Motor Driver for CD-ROM Spindle Drive Overview The LB11995 is a 3-phase brushless motor driver especially suited for CD-ROM spindle motor drives. Package Dimensions unit: mm 3227-HSOP24 [LB11995] 15.3 4.3 0.3 Allowable power dissipation, Pd max W Current linear drive Control V type amplifier Separate power supply for output upper side bias circuit allows low output sa.

LB11995 Features

* e output Upper side output NPN transistor collector pin (common for all 3 phases). For current detection, connect resistor between VCC3 pin and RF pin. Constant current control and current l

LB11995_SanyoSemiconDevice.pdf

LB11995 Datasheet Preview — Preview of LB11995 PDF

Datasheet Details

Part number:

LB11995

Manufacturer:

Sanyo

File Size:

97.88 KB

Description:

Three-phase brushless motor driver for cd-rom spindle drive.
