LC35256DT-70, Dual Control Pins: OE and CE 256K (32768-word X 8-bit) SRAM

Ordering number : EN5823 CMOS IC LC35256D-10, LC35256DM, DT-70/10 Dual Control Pins: OE and CE 256K (32768-word × 8-bit) SRAM Overview The LC35256D.

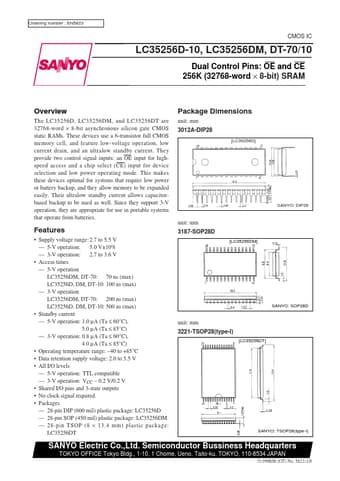

datasheet Preview Page 1 from Datasheet4u.com

LC35256DT-70_SanyoSemiconDevice.pdf

LC35256DT-70 Datasheet Preview — Preview of LC35256DT-70 PDF

Datasheet Details

Part number:

LC35256DT-70

Manufacturer:

Sanyo

File Size:

108.58 KB

Description:

Dual Control Pins: OE and CE 256K (32768-word X 8-bit) SRAM

Features

* Supply voltage range: 2.7 to 5.5 V
* 5-V operation: 5.0 V±10%
* 3-V operation: 2.7 to 3.6 V
* Access times
* 5-V operation LC35256DM, DT-70: 70 ns (max) LC35256D, DM, DT-10: 100 ns (max)
* 3-V operation LC35256DM, DT-70: 200 ns (max) LC35256D, DM, DT

Applications

* must set WE high during the read cycle. 2. External circuits in the application must not apply reverse phase signals to the DOUT pins when those pins are in the output state. 3. The time tWP is the period when CE and WE are both low. It is defined as the time from the fall of WE to the rise of CE or
