LC3564RT-10LV, 64K (8192 words x 8 bits) SRAM

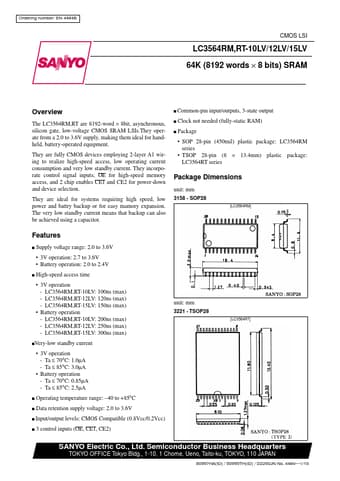

Ordering number: EN 4484B CMOS LSI LC3564RM,RT-10LV/12LV/15LV 64K (8192 words × 8 bits) SRAM Overview The LC3564RM,RT are 8192-word × 8bit, asynchronous, silicon gate, low-voltage CMOS SRAM LSIs.They operate from a 2.0 to 3.6V supply, making them ideal for handheld, battery-operated equipment.

They are fully CMOS devices employing 2-layer A1 wiring to realize high-speed access, low operating current consumption and very low standby current.

They incorporate control signal inputs; OE for high-

LC3564RT-10LV Features

* s Supply voltage range: 2.0 to 3.6V

* 3V operation: 2.7 to 3.6V

* Battery operation: 2.0 to 2.4V s High-speed access time

* 3V operation - LC3564RM,RT-10LV: 100ns (max) - LC3564RM,RT-12LV: 120ns (max) - LC3564RM,RT-15LV: 150ns (max)

* Battery operation - LC3564RM,R
