LC3564RT-12LV - 64K (8192 words x 8 bits) SRAM

Name: LC3564RT-12LV
SKU: LC3564RT-12LV-391845

Sanyo

The LC3564RT-12LV by Sanyo is a 64K (8192 words x 8 bits) SRAM. Below is the official datasheet preview.

Datasheet Details

Part number	LC3564RT-12LV
Manufacturer	Sanyo
File Size	442.22 KB
Description	64K (8192 words x 8 bits) SRAM
Datasheet	LC3564RT-12LV_SanyoSemiconDevice.pdf

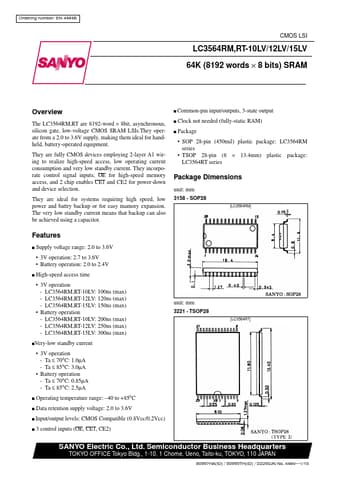

Additional preview pages of the LC3564RT-12LV datasheet.

s Supply voltage range: 2.0 to 3.6V.
3V operation: 2.7 to 3.6V.
Battery operation: 2.0 to 2.4V s High-speed access time.
3V operation - LC3564RM,RT-10LV: 100ns (max) - LC3564RM,RT-12LV: 120ns (max) - LC3564RM,RT-15LV: 150ns (max).
Battery operation - LC3564RM,RT-10LV: 200ns (max) - LC3564RM,RT-12LV: 250ns (max) - LC3564RM,RT-15LV: 300ns (max) unit: mm 3221 - TSOP28 [LC3564RT] s Very-low standby current.
3V operation - Ta ≤ 70°C: 1.0µA - Ta ≤ 85°.
