STK392-020 - Convergence Correction Circuit Three Channels

Product Overview

Sanyo

📥 Download Datasheet

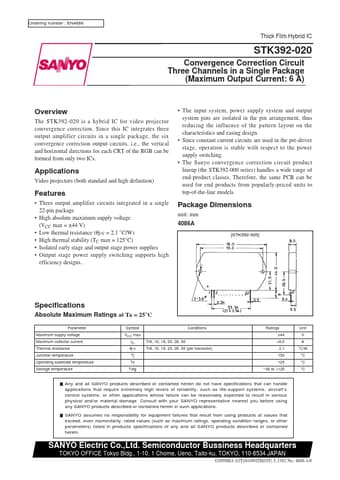

STK392-020 Convergence Correction Circuit Three Channels by Sanyo - Datasheet Preview — Datasheet preview – STK392-020

Datasheet Details

Part number	STK392-020
Manufacturer	Sanyo
File Size	219.53 KB
Description	Convergence Correction Circuit Three Channels
Datasheet	STK392-020 Datasheet
Additional preview pages of the STK392-020 datasheet.

Product details

Features

Three output amplifier circuits integrated in a single 22-pin package.
High absolute maximum supply voltage (VCC max = ±44 V).
Low thermal resistance (θj-c = 2.1 °C/W).
High thermal stability (TC max = 125°C).
Isolated early stage and output stage power supplies.
Output stage power supply switching supports high efficiency designs.
The input system, power supply system and output system pins are isolated in the pin arrangement,.
