STK392-110 Datasheet - Sanyo

STK392-110 - Thick Film Hybrid IC

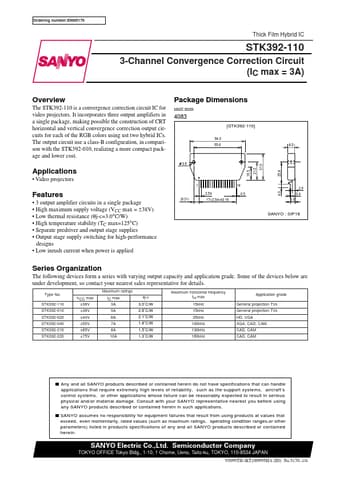

Ordering number:ENN5170 Thick Film Hybrid IC STK392-110 3-Channel Convergence Correction Circuit (IC max = 3A) Overview The STK392-110 is a convergence correction circuit IC for video projectors.

It incorporates three output amplifiers in a single package, making possible the construction of CRT horizontal and vertical convergence correction output circuits for each of the RGB colors using ust two hybrid ICs.

The output circuit use a class-B configuration, in comparison with the STK392-010, re

STK392-110 Features

* 3 output amplifier circuits in a single package

* High maximum supply voltage (VCC max = ±38V)

* Low thermal resistance (θj-c=3.0°C/W)

* High temperature stability (TC max=125°C)

* Separate predriver and output stage supplies

* Output stage supply sw
