STK4040V Datasheet PDF - Sanyo AF Power Amplifier Specs

STK4040V - AF Power Amplifier

Datasheet Summary

Features

Small-sized package permitting audio sets to be made slimmer (up to 70W).
The STK4024Vseries are available for output 20W to 100W (200W) and are pin-compatible. (120W to 200W : 18 pins).
Facilitates thermal design of slim stereo sets.
Distortion 0.08% due to current mirror circuit.
Possible to design electronic supplementary circuits (pop noise muting at the time of power ON/OFF, load short protector, thermal shutdown) Package Dimensions unit: mm.

Datasheet Details

Part number	STK4040V
Manufacturer	Sanyo
File Size	255.29 KB
Description	AF Power Amplifier
Datasheet	STK4040V Datasheet
Additional preview pages of the STK4040V datasheet.

📁 Similar Datasheet

STK404-050 - 1-Channel Class AB Audio Power Amplifier IC (Sanyo Electric)

STK404-070N-E - 1ch class-AB Audio Power IC (ON Semiconductor)

STK404-070S - One-Channel Class AB Audio Power Amplifier (Sanyo Electric)

STK404-090S - One-Channel Class AB Audio Power Amplifier IC 50W (Sanyo Electric)

STK404-120N-E - 1ch class-AB Audio Power (ON Semiconductor)

STK404-130 - One-Channel Class AB Audio Power Amplifier IC (Sanyo Semiconductor Corporation)

STK404-130S - 1-Channel Class AB Audio Power Amplifier (Sanyo Semiconductor Corporation)

STK404-140N-E - 1ch class-AB Audio Power IC (ON Semiconductor)

STK400 - N-Channel MOSFET (SamHop Microelectronics)

STK400-010 - 3ch AF Power Amplifier (Sanyo Semicon Device)

Full PDF Text Transcription

Click to expand full text

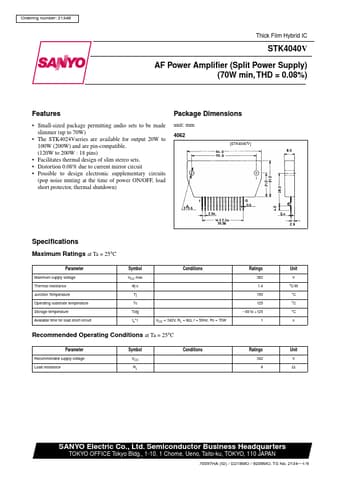

Ordering number: 2134B Thick Film Hybrid IC STK4040V AF Power Ampliﬁer (Split Power Supply) (70W min, THD = 0.08%) Features • Small-sized package permitting audio sets to be made slimmer (up to 70W) • The STK4024Vseries are available for output 20W to 100W (200W) and are pin-compatible. (120W to 200W : 18 pins) • Facilitates thermal design of slim stereo sets. • Distortion 0.
