STK4040XI AF Power Amplifier

STK4040XI Description

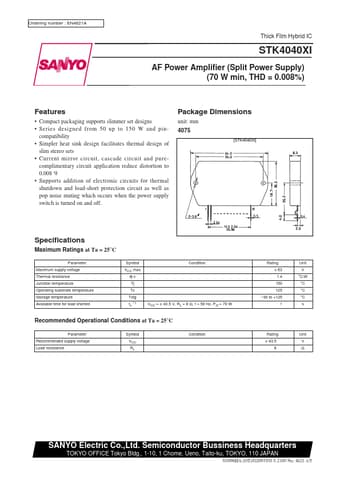

Ordering number : EN4621A Thick Film Hybrid IC STK4040XI AF Power Amplifier (Split Power Supply) (70 W min, THD = 0.008%) .
of External Parts R1, C1 C2 : Input filter circuit. Reduces high-frequency noise. DC current suppression.

STK4040XI Features

* Compact packaging supports slimmer set designs
* Series designed from 50 up to 150 W and pincompatibility
* Simpler heat sink design facilitates thermal design of slim stereo sets

STK4040XI Applications

* (For use with differential stage applications) For oscillation suppression and phase compensation applications (A Mylar capacitor is recommended for C4 for use with output stage applications) For oscillation suppression and phase compensation applications Power stage (Must be connected near the pin)
