STK4042V AF Power Amplifier

STK4042V Description

Ordering number : EN4390A Thick Film Hybrid IC STK4042V AF Power Amplifier (Split Power Supply) (80 W min, THD = 0.08%) .
of External Parts : Input filter circuit R1, C1. Reduces high-frequency noise. DC current suppression.

STK4042V Features

* Compact packaging supports slimmer set designs
* Series designed from 20 up to 100 W (200 W) and pincompatibility (120 to 200 W have 18 pins)
* Simpler heat sink design facilitates thermal design of slim stereo sets

STK4042V Applications

* (For use with differential stage applications) For oscillation suppression and phase compensation applications (A Mylar capacitor is recommended for C4 for use with output stage applications) For oscillation suppression and phase compensation applications Power stage (Must be connected near the pin)

📥 Download Datasheet

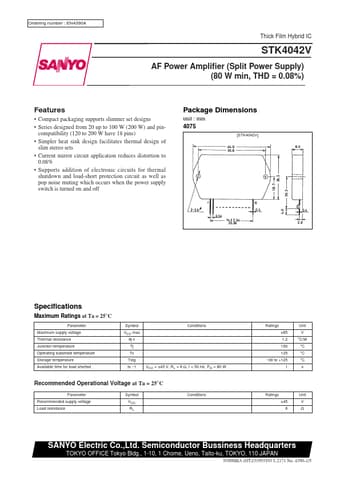

Preview of STK4042V PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STK4042V
Manufacturer
Sanyo
File Size
297.27 KB
Datasheet
STK4042V_Sanyo.pdf
Description
AF Power Amplifier
