STK4042XI AF Power Amplifier

STK4042XI Description

Ordering number: EN1677B Thick Film Hybrid IC STK4042XI AF Power Ampliļ¬er (Split Power Supply) (80W min, THD = 0.008%) .

STK4042XI Features

* Small-sized package permitting audio sets to be made slimmer.
* The STK4018XI series are available for output 50W to 80W and are pin-compatible.
* Facilitates thermal design of slim stereo sets.
* The use of a current mirror circuit, cascode circuit, pure complement

📥 Download Datasheet

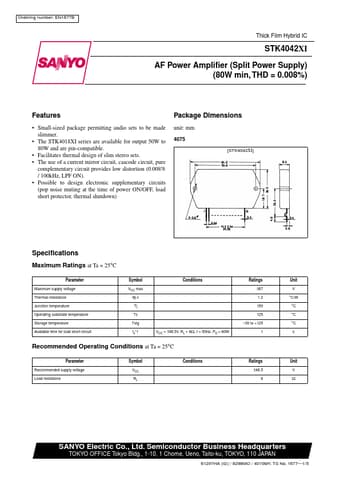

Preview of STK4042XI PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STK4042XI
Manufacturer
Sanyo
File Size
330.78 KB
Datasheet
STK4042XI_Sanyo.pdf
Description
AF Power Amplifier
