STK4046V AF Power Amplifier

STK4046V Description

Ordering number : EN4594A Thick Film Hybrid IC STK4046V AF Power Amplifier (Split Power Supply) (120 W min, THD = 0.08%) .

STK4046V Features

* Compact packaging supports slimmer set designs.
* Series designed from 20 up to 100 W (200 W) and pincompatibility (120 to 200 W have 18 pins. )
* Simpler heat sink design facilitates thermal design of slim stereo sets.

📥 Download Datasheet

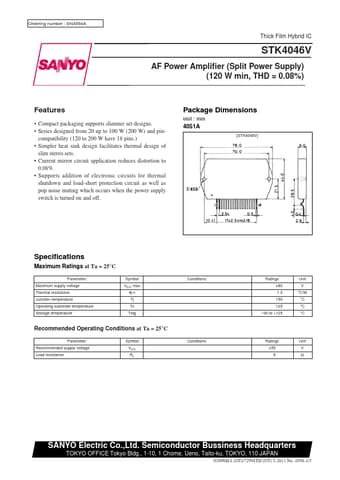

Preview of STK4046V PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STK4046V
Manufacturer
Sanyo
File Size
50.58 KB
Datasheet
STK4046V_Sanyo.pdf
Description
AF Power Amplifier
