STK4046XI AF Power Amplifier

STK4046XI Description

Ordering number : EN4678A Thick Film Hybrid IC STK4046XI AF Power Amplifier (Split Power Supply) (120 W min, THD = 0.008%) .

STK4046XI Features

* Compact packaging supports slimmer set designs
* Series designed from 50 up to 150 W and pincompatibility
* Simpler heat sink design facilitates thermal design of slim stereo sets

📥 Download Datasheet

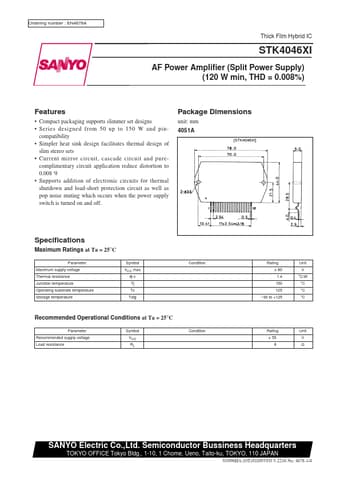

Preview of STK4046XI PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STK4046XI
Manufacturer
Sanyo
File Size
272.08 KB
Datasheet
STK4046XI_Sanyo.pdf
Description
AF Power Amplifier
