STK4048V 150 W min AF Power Amplifier

STK4048V Description

Ordering number : EN4593A Thick Film Hybrid IC STK4048V 150 W min AF Power Amplifier (Split Power Supply) .

STK4048V Features

* Compact packaging supports slimmer set designs
* Series designed from 20 up to 100 W (200 W) and pincompatibility (120 to 200 W have 18 pins)
* Simpler heat sink design facilitates thermal design of slim stereo sets

📥 Download Datasheet

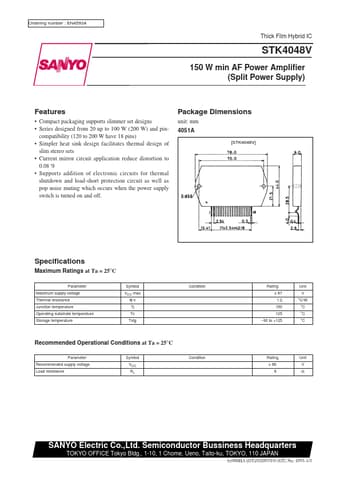

Preview of STK4048V PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STK4048V
Manufacturer
Sanyo
File Size
54.95 KB
Datasheet
STK4048V_Sanyo.pdf
Description
150 W min AF Power Amplifier
