STK4191V AF Power Amplifier (Split Power Supply) (50W + 50W min / THD = 0.08%)

STK4191V Description

Ordering number: EN1651B Thick Film Hybrid IC STK4191V AF Power Amplifier (Split Power Supply) (50W + 50W min, THD = 0.08%) .

STK4191V Features

* Built-in muting circuit to cut off various kinds of pop noise.
* Greatly reduced heat sink due to substrate temperature 125°C guaranteed.
* Distortion 0.08% due to current mirror circuit.
* Pin-compatible with the STK4101II series. The STK4101V series use the same p

📥 Download Datasheet

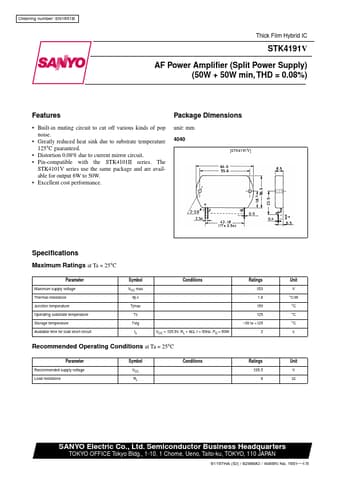

Preview of STK4191V PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STK4191V
Manufacturer
Sanyo
File Size
375.99 KB
Datasheet
STK4191V_Sanyo.pdf
Description
AF Power Amplifier (Split Power Supply) (50W + 50W min / THD = 0.08%)
