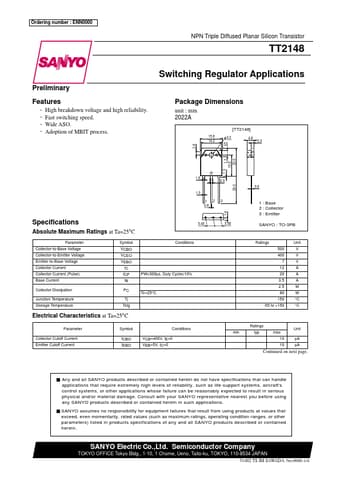

Package Dimensions
unit : mm 2022A
[TT2148]
3.5
15.6 14.0 3.2 4.8 2.0
High breakdown voltage and high reliability. Fast switching speed. Wide ASO. Adoption of MBIT process. 2.6
1.6
2.0
1.3 20.0
1.2 15.0 20.0
0.6
1.0 1 0.6 2 3
1 : Base 2 : Collector 3 : Emitter SANYO : TO-3PB
Specifications
Absolute Maximum Ratings at Ta=25°C
Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Curre.
