2N6466 Datasheet, Transistor, SavantIC

PDF File Details

Part number:

2N6466

Manufacturer:

SavantIC

File Size:

141.08kb

Download:

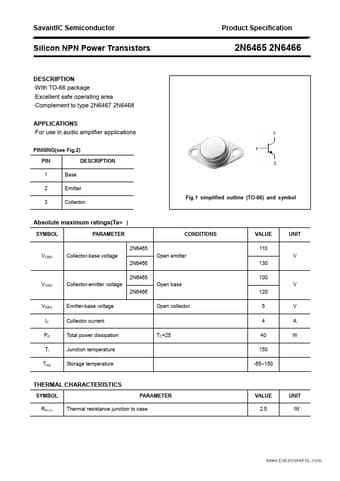

📄 Datasheet

Description:

(2n6465 / 2n6466) silicon power transistor. With TO-66 package Excellent safe operating area Complement to type 2N6467 2N6468 APPLICATIONS Fo

2N6466 Application

• Applications
• For use in audio amplifier applications PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-66) a
