Part number:
2N6467
Manufacturer:
SavantIC
File Size:
141.62 KB
Description:
(2n6467 / 2n6468) silicon power transistor.
Datasheet Details
Datasheet Details
Part number:
2N6467
Manufacturer:
SavantIC
File Size:
141.62 KB
Description:
(2n6467 / 2n6468) silicon power transistor.

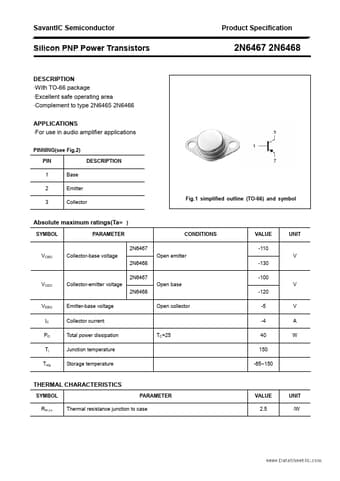

2N6467, (2N6467 / 2N6468) Silicon Power Transistor
*With TO-66 package *Excellent safe operating area *Complement to type 2N6465 2N6466 APPLICATIONS *For use in audio amplifier applications PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-66) and symbol DESCRIPTION Absolute maximum ratings(Ta= ) SYMBO
