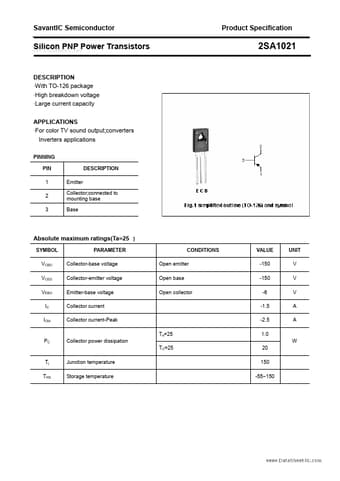

2SA1021 Datasheet, Transistors, SavantIC

PDF File Details

Part number:

2SA1021

Manufacturer:

SavantIC

File Size:

134.68kb

Download:

📄 Datasheet

Description:

Silicon power transistors.

With TO-126 package

High breakdown voltage

Large current capacity APPLICATIONS

For color TV sound

2SA1021 Application

• Applications
• For color TV sound output;converters Inverters applications PINNING PIN 1 2 3 Emitter Collector;connected to mounting base Bas
