2SA1041

Silicon POwer Transistors

SavantIC

2SA1041 General Description

*With TO-3 package
*High transition frequency
*Excellent safe operating area APPLICATIONS
*Power switching applications
*High frequency power amplifier
*Switching regulators
*DC-DC converters PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO.

2SA1041 Datasheet (137.12 KB)

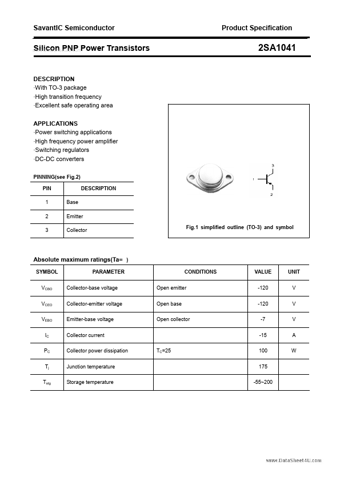

2SA1041 Datasheet Preview — Preview of 2SA1041 PDF

Datasheet Details

Part number:

2SA1041

Manufacturer:

SavantIC

File Size:

137.12 KB

Description:

Silicon power transistors.
