2SA1042, Silicon PNP Power Transistor

isc Silicon PNP Power Transistor 2SA1042 .
High Current Capability. Good Linearity of hFE. Collector-Emitter Breakdown Voltage- : V(BR)CEO= -70V(Min. Complement to Type 2SC24.

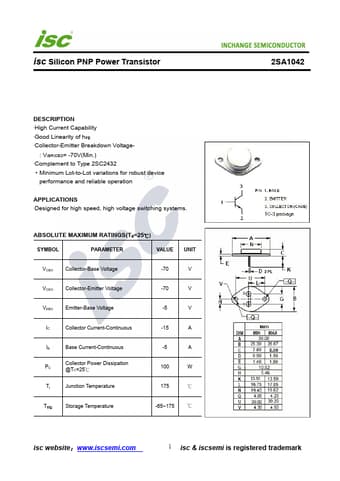

datasheet Preview Page 1 from Datasheet4u.com

2SA1042-InchangeSemiconductor.pdf

2SA1042 Datasheet Preview — Preview of 2SA1042 PDF

Datasheet Details

Part number:

2SA1042

Manufacturer:

Inchange Semiconductor

File Size:

221.52 KB

Description:

Silicon PNP Power Transistor

Applications

* Designed for high speed, high voltage switching systems. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -70 V VCEO Collector-Emitter Voltage -70 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous -15 A IB Base Current
