2SA1008 POWER TRANSISTOR

2SA1008 Description

INCHANGE Semiconductor isc Silicon PNP Power Transistor 2SA1008 .
Low Collector Saturation Voltage- : VCE(sat)= -0. Fast Switching Speed. Complement to Type 2SC2331. Minimum Lot-to-.

2SA1008 Applications

* Designed for use as a driver in devices such as switching regulators, DC/DC converters, and high-frequency power amplifiers. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -100 V VCEO Collector-Emitter Voltage -100 V VEBO Emitter-Base Volta

📥 Download Datasheet

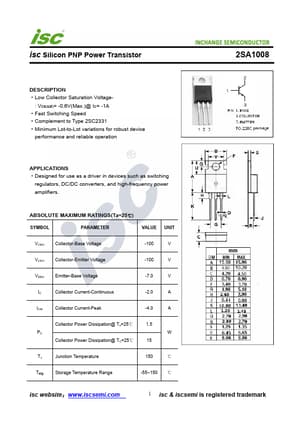

Preview of 2SA1008 PDF
datasheet Preview Page 2 datasheet Preview Page 3
