2SA1009 - Silicon PNP Power Transistor

Product Overview

📥 Download Datasheet

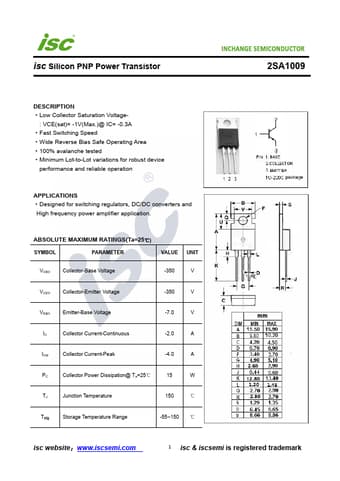

Datasheet preview – 2SA1009

Datasheet Details

Part number 2SA1009
Manufacturer Inchange Semiconductor
File Size 213.20 KB
Description Silicon PNP Power Transistor
Datasheet download datasheet 2SA1009 Datasheet
Additional preview pages of the 2SA1009 datasheet.

Product details

Description

Low Collector Saturation Voltage- : VCE(sat)= -1V(Max.)@ IC= -0.3A Fast Switching Speed Wide Reverse Bias Safe Operating Area 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for switching regulators, DC/DC converters and High frequency power amplifier application.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -350 V VCEO Collector-Emitt
