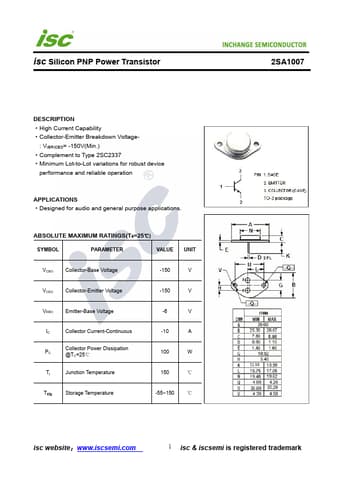

2SA1007 Datasheet, Transistor, Inchange Semiconductor

PDF File Details

Part number:

2SA1007

Manufacturer:

Inchange Semiconductor

File Size:

195.56kb

Download:

📄 Datasheet

Description:

Silicon pnp power transistor.

High Current Capability

Collector-Emitter Breakdown Voltage- : V(BR)CEO= -150V(Min.)

Complement to Type 2S

2SA1007 Application

• Applications
• Designed for audio and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO
