2SA1040 - Silicon PNP Power Transistors

Product Overview

Inchange Semiconductor

Datasheet Details

Part number	2SA1040
Manufacturer	Inchange Semiconductor
File Size	194.83 KB
Description	Silicon PNP Power Transistors
Datasheet	2SA1040 Datasheet

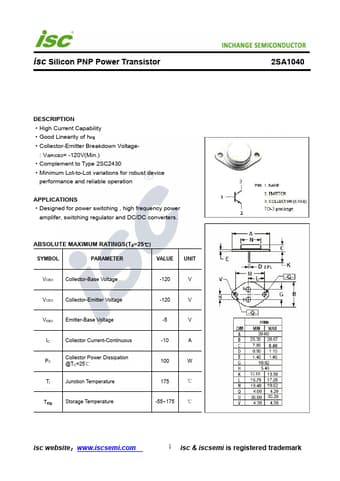

Additional preview pages of the 2SA1040 datasheet.

Product details

Description

High Current Capability Good Linearity of hFE Collector-Emitter Breakdown Voltage- : V(BR)CEO= -120V(Min.) Complement to Type 2SC2430 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for power switching , high frequency power amplifer, switching regulator and DC/DC converters.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -120 V VCEO Collector-Emitter Voltage
