2SA1043 - Silicon POwer Transistors

The 2SA1043 by SavantIC is a Silicon POwer Transistors. Below is the official datasheet preview.

📥 Download Datasheet

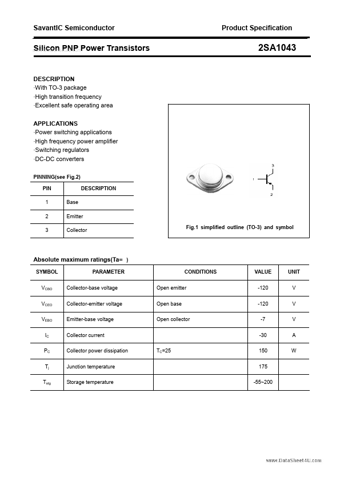

Official preview page of the 2SA1043 Silicon POwer Transistors datasheet (SavantIC).

Datasheet Details

Part number 2SA1043
Manufacturer SavantIC
File Size 136.70 KB
Description Silicon POwer Transistors
Datasheet download datasheet 2SA1043_SavantIC.pdf
Additional preview pages of the 2SA1043 datasheet.

2SA1043 Product details

Description

With TO-3 package High transition frequency Excellent safe operating area APPLICATIONS Power switching applications High frequency power amplifier Switching regulators DC-DC converters PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION Absolute maximum ratings(Ta= ) SYMBOL VCBO VCEO VEBO IC PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collect
