2SA1289 - SILICON POWER TRANSISTOR

Product Overview

📥 Download Datasheet

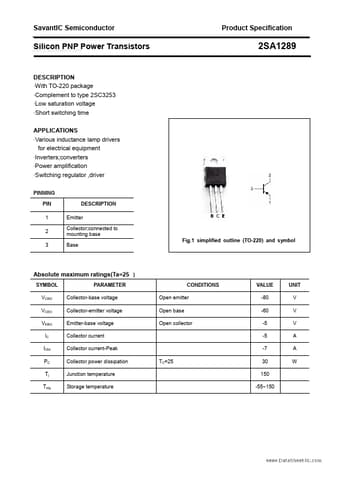

Datasheet preview – 2SA1289

Datasheet Details

Part number 2SA1289
Manufacturer SavantIC
File Size 166.95 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SA1289 Datasheet
Additional preview pages of the 2SA1289 datasheet.

Product details

Description

With TO-220 package Complement to type 2SC3253 Low saturation voltage Short switching time APPLICATIONS Various inductance lamp drivers for electrical equipment Inverters;converters Power amplification Switching regulator ,driver PINNING PIN 1 2 3 DESCRIPTION Emitter Collector;connected to mounting base Base Fig.1 simplified outline (TO-220) and symbol Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM PC Tj Tstg PARAMETER Collector-base voltag
