2SA1283 - PNP Transistor

Datasheet Summary

Description

High Voltage and High Current Vceo=-60V(Min.） Excellent hFE Linearity Low Noise Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Audio frequency general purpose amplifier Applications

Driver stage amplifier applications.

📥 Download Datasheet

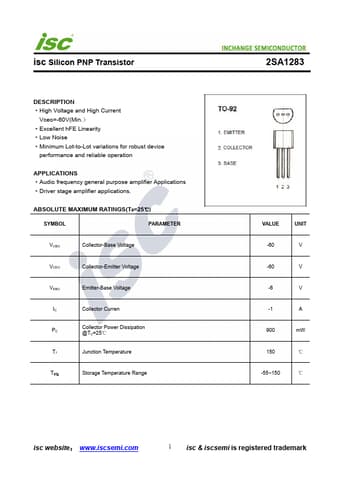

Datasheet preview – 2SA1283

Datasheet Details

Part number 2SA1283
Manufacturer INCHANGE
File Size 162.61 KB
Description PNP Transistor
Datasheet download datasheet 2SA1283 Datasheet
Additional preview pages of the 2SA1283 datasheet.

📁 Similar Datasheet

  • 2SA1283 - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)
  • 2SA1283 - PNP Transistor (JCET)
  • 2SA1280 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SA1280 - POWER TRANSISTOR (Inchange Semiconductor)
  • 2SA1282 - Silicon PNP Transistor (Isahaya Electronics Corporation)
  • 2SA1282A - Silicon PNP Transistor (Isahaya Electronics Corporation)
  • 2SA1284 - Silicon PNP Epitaxial Type Transistor (Isahaya Electronics)
  • 2SA1285 - Silicon PNP Transistor (Isahaya Electronics Corporation)
  • 2SA1285A - Silicon PNP Transistor (Isahaya Electronics Corporation)
  • 2SA1286 - Silicon PNP Epitaxial Type Transistor (ETC)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text
isc Silicon PNP Transistor DESCRIPTION ·High Voltage and High Current Vceo=-60V(Min.） ·Excellent hFE Linearity ·Low Noise ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Audio frequency general purpose amplifier Applications ·Driver stage amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VCBO Collector-Base Voltage VCEO Collector-Emitter Voltage VEBO Emitter-Base Voltage IC Collector Curren PC Collector Power Dissipation @TC=25℃ TJ Junction Temperature Tstg Storage Temperature Range 2SA1283 VALUE UNIT -60 V -60 V -6 V -1 A 900 mW 150 ℃ -55~150 ℃ isc website： www.iscsemi.
