2SA1280 - SILICON POWER TRANSISTOR

Datasheet Summary

Description

With TO-220F package High breakdown voltage High power dissipation APPLICATIONS For use in low frequency power amplifier Color TV vertical deflection output PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-220F) and symbol DESCRIPTION Absolute maximum rating

📥 Download Datasheet

Datasheet preview – 2SA1280

Datasheet Details

Part number 2SA1280
Manufacturer SavantIC
File Size 230.92 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SA1280 Datasheet
Additional preview pages of the 2SA1280 datasheet.

📁 Similar Datasheet

  • 2SA1280 - POWER TRANSISTOR (Inchange Semiconductor)
  • 2SA1282 - Silicon PNP Transistor (Isahaya Electronics Corporation)
  • 2SA1282A - Silicon PNP Transistor (Isahaya Electronics Corporation)
  • 2SA1283 - PNP Transistor (INCHANGE)
  • 2SA1283 - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)
  • 2SA1283 - PNP Transistor (JCET)
  • 2SA1284 - Silicon PNP Epitaxial Type Transistor (Isahaya Electronics)
  • 2SA1285 - Silicon PNP Transistor (Isahaya Electronics Corporation)
  • 2SA1285A - Silicon PNP Transistor (Isahaya Electronics Corporation)
  • 2SA1286 - Silicon PNP Epitaxial Type Transistor (ETC)
Other Datasheets by SavantIC

Full PDF Text Transcription

Click to expand full text

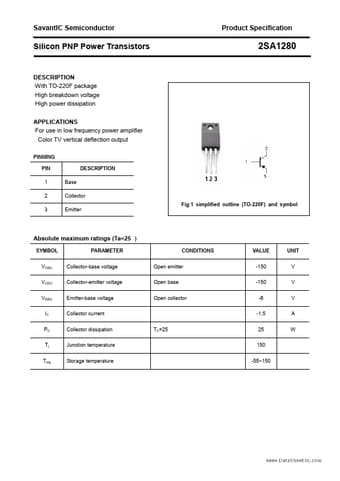

SavantIC Semiconductor www.DataSheet4U.com Product Specification Silicon PNP Power Transistors 2SA1280 DESCRIPTION ·With TO-220F package ·High breakdown voltage ·High power dissipation APPLICATIONS ·For use in low frequency power amplifier Color TV vertical deflection output PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-220F) and symbol DESCRIPTION Absolute maximum ratings (Ta=25 ) SYMBOL VCBO VCEO VEBO IC PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector dissipation Junction temperature Storage temperature TC=25 CONDITIONS Open emitter Open base Open collector VALUE -150 -150 -6 -1.5 25 150 -55~150 UNIT V V V A W SavantIC Semiconductor www.DataSheet4U.
