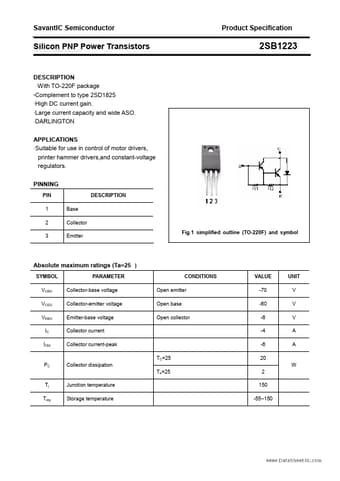

2SB1223 Datasheet, Transistor, SavantIC

PDF File Details

Part number:

2SB1223

Manufacturer:

SavantIC

File Size:

241.69kb

Download:

📄 Datasheet

Description:

Silicon power transistor.

With TO-220F package

Complement to type 2SD1825

High DC current gain.

Large current capacity and

2SB1223 Application

• Applications
• Suitable for use in control of motor drivers, printer hammer drivers,and constant-voltage regulators. PINNING PIN 1 2 3 Base C
