2SB1220 - Silicon PNP epitaxial planer type Transistor

Panasonic Semiconductor

Datasheet Details

Part number	2SB1220
Manufacturer	Panasonic Semiconductor
File Size	36.48 KB
Description	Silicon PNP epitaxial planer type Transistor
Datasheet	2SB1220 Datasheet
Additional preview pages of the 2SB1220 datasheet.

📁 Similar Datasheet

2SB1220 - Silicon PNP epitaxial planar type Transistor (Kexin)
2SB1223 - PNP/NPN Transistors (Sanyo Semicon Device)
2SB1223 - SILICON POWER TRANSISTOR (SavantIC)
2SB1223 - PNP Transistor (INCHANGE)
2SB1224 - PNP/NPN Transistors (Sanyo Semicon Device)
2SB1225 - Epitaxial Planar Silicon Transistor (Sanyo Semicon Device)
2SB1225 - SILICON POWER TRANSISTOR (SavantIC)
2SB1225 - PNP Transistor (INCHANGE)
2SB1226 - Epitaxial Planar Silicon Transistor (Sanyo Semicon Device)
2SB1226 - SILICON POWER TRANSISTOR (SavantIC)

Other Datasheets by Panasonic Semiconductor

2SB1221 - Silicon PNP epitaxial planer type Transistor
2SB1221 - Silicon NPN Transistor
2SB1207 - Silicon PNP epitaxial planer type Transistor
2SB1209 - Silicon PNP triple diffusion planer type Transistor
2SB1218A - Silicon PNP Transistor
2SB1219 - Silicon PNP epitaxial planer type Transistor
2SB1219A - Silicon PNP epitaxial planer type Transistor
2SB1252 - Silicon PNP epitaxial planar type Transistor

Full PDF Text Transcription

Click to expand full text

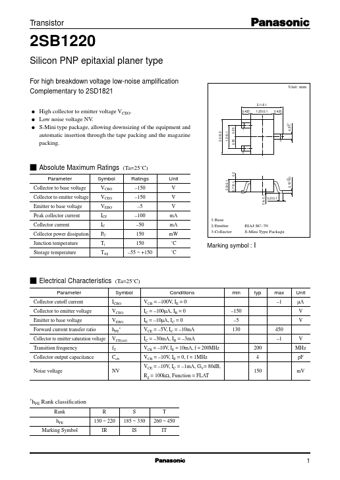

Transistor 2SB1220 Silicon PNP epitaxial planer type For high breakdown voltage low-noise amplification Complementary to 2SD1821 2.1±0.1 Unit: mm q q q High collector to emitter voltage VCEO. Low noise voltage NV. S-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing. 0.425 1.25±0.1 0.425 0.65 1 2.0±0.2 1.3±0.1 0.65 3 2 0.9±0.1 Collector to base voltage Collector to emitter voltage Emitter to base voltage Peak collector current Collector current Collector power dissipation Junction temperature Storage temperature VCBO VCEO VEBO ICP IC PC Tj Tstg –150 –150 –5 –100 –50 150 150 –55 ~ +150 V V V mA mA mW ˚C ˚C 0.7±0.1 0 to 0.1 0.2±0.

Published: Mar 22, 2005 |
