2SB1226 - Epitaxial Planar Silicon Transistor

Datasheet Summary

Features

  • High DC current gain.
  • Large current capcity and wide ASO.
  • Micaless pakcage facilitating mounting. ( ) : 2SB1226 1 : Base 2 : Collector 3 : Emitter SANYO : TO-220ML Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC ICP PC Conditions Ratings (.
  • )110.

📥 Download Datasheet

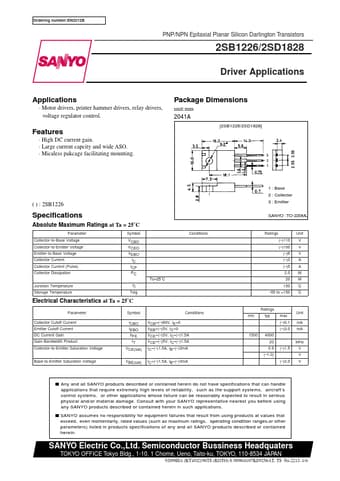

Datasheet preview – 2SB1226
