2SC1098A, 2SC1098 Datasheet - SavantIC

2SC1098A SILICON POWER TRANSISTOR

*With TO-202 package *High Voltage *High transition frequency APPLICATIONS *Audio frequency power amplifier *Low speed switching *Suitable for output stages of 5~17W small stereo sets PINNING(see Fig.2) PIN 1 2 3 Base Collector Fig.1 simplified outline (TO-202) and symbol Emi.

2SC1098_SavantIC.pdf

This datasheet PDF includes multiple part numbers: 2SC1098A, 2SC1098. Please refer to the document for exact specifications by model.

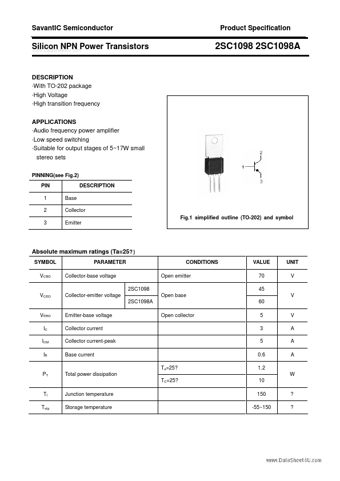

2SC1098A Datasheet Preview Page 2 2SC1098A Datasheet Preview Page 3

Datasheet Details

Part number:

2SC1098A, 2SC1098

Manufacturer:

SavantIC

File Size:

108.13 KB

Description:

Silicon power transistor.

Note:

This datasheet PDF includes multiple part numbers: 2SC1098A, 2SC1098.
Please refer to the document for exact specifications by model.
